ESP32-S3 Pinout for WROOM-1 module
a year ago, April 13, 2023
Reading time: 1 mins
It is hard to find one good colour-coded pinout drawing for ESP32-S3 so I made one myself.
I will update it with for info as I get time. I plan to make more pin out images for other modules too like ESP32-C3 with detailed pin types.

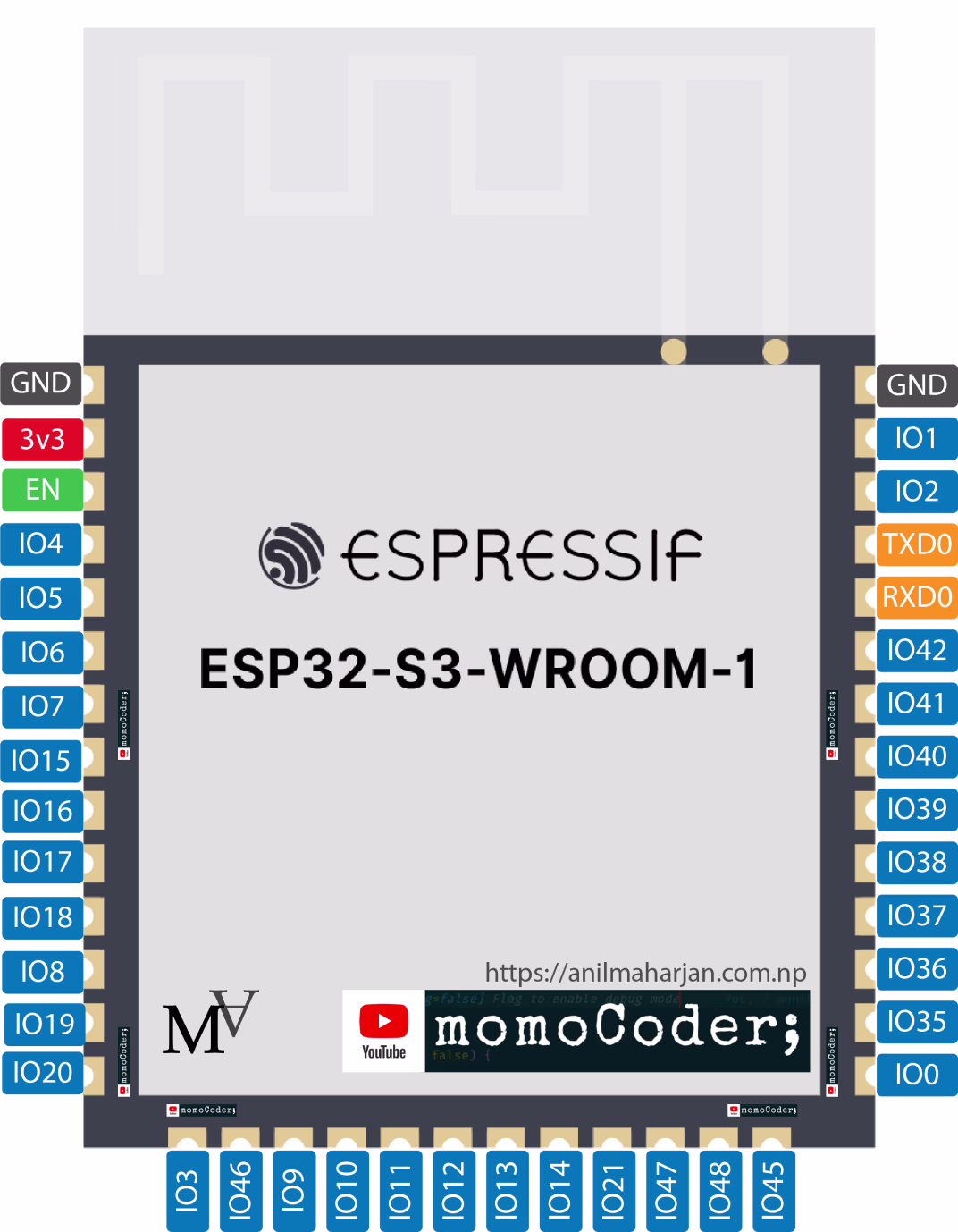

![ESP32-S3 pinout WROOM-1 Module](https://res.cloudinary.com/anilmaharjan-com-np/image/upload/f_avif/q_auto/c_scale,w_1072/v1/Blog/ESP32-S3.png?_a=DATAdtDeZAA0)
